共享目录

kubernetes对接分部式存储

PV与PVC快速入门

k8s存储的目的就是保证Pod重建后，数据不丢失。简单的数据持久化的下述方式：

• emptyDir

  apiVersion: v1
  kind: Pod
  metadata:
    name: test-pod
  spec:
    containers:
    - image: k8s.gcr.io/test-webserver
      name: webserver
      volumeMounts:
      - mountPath: /cache
        name: cache-volume
    - image: k8s.gcr.io/test-redis
      name: redis
      volumeMounts:
      - mountPath: /data
        name: cache-volume
  volumes:
    - name: cache-volume
      emptyDir: {}

  • Pod内的容器共享卷的数据
  • 存在于Pod的生命周期，Pod销毁，数据丢失
  • Pod内的容器自动重建后，数据不会丢失

• hostPath

  apiVersion: v1
  kind: Pod
  metadata:
    name: test-pod
  spec:
    containers:
    - image: k8s.gcr.io/test-webserver
      name: test-container
      volumeMounts:
      - mountPath: /test-pod
        name: test-volume
    volumes:
    - name: test-volume
      hostPath:
        # directory location on host
        path: /data
        # this field is optional
        type: Directory

  通常配合nodeSelector使用

• nfs存储

  ...
    volumes:
    - name: redisdata             #卷名称
      nfs:                        #使用NFS网络存储卷
        server: 192.168.31.241    #NFS服务器地址
        path: /data/redis         #NFS服务器共享的目录
        readOnly: false           #是否为只读
  ...

volume支持的种类众多（参考 https://kubernetes.io/docs/concepts/storage/volumes/#types-of-volumes ），每种对应不同的存储后端实现，因此为了屏蔽后端存储的细节，同时使得Pod在使用存储的时候更加简洁和规范，k8s引入了两个新的资源类型，PV和PVC。

PersistentVolume（持久化卷），是对底层的存储的一种抽象，它和具体的底层的共享存储技术的实现方式有关，比如 Ceph、GlusterFS、NFS 等，都是通过插件机制完成与共享存储的对接。如使用PV对接NFS存储：

apiVersion: v1
kind: PersistentVolume
metadata:
  name: nfs-pv
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /data/k8s
    server: 172.21.65.226

• capacity，存储能力， 目前只支持存储空间的设置， 就是我们这里的 storage=1Gi，不过未来可能会加入 IOPS、吞吐量等指标的配置。

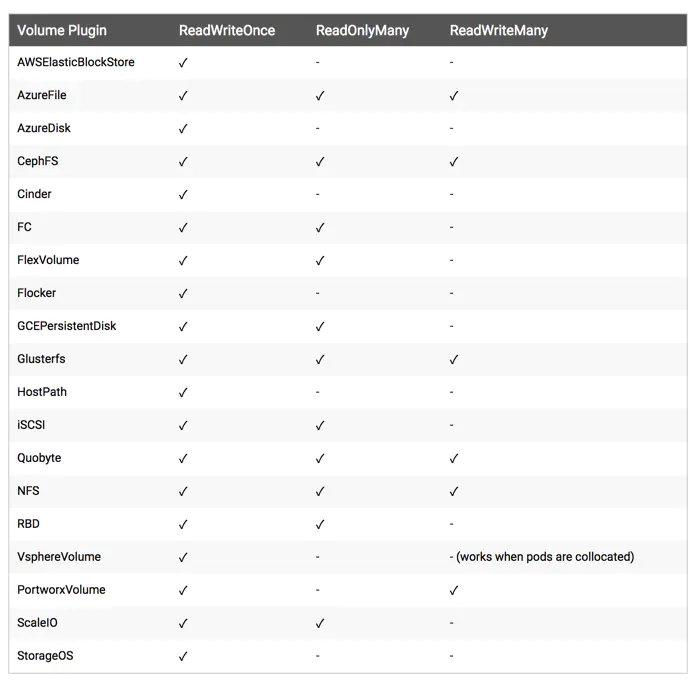

• accessModes，访问模式， 是用来对 PV 进行访问模式的设置，用于描述用户应用对存储资源的访问权限，访问权限包括下面几种方式：
  • ReadWriteOnce（RWO）：读写权限，但是只能被单个节点挂载
  • ReadOnlyMany（ROX）：只读权限，可以被多个节点挂载
  • ReadWriteMany（RWX）：读写权限，可以被多个节点挂载

• persistentVolumeReclaimPolicy，pv的回收策略, 目前只有 NFS 和 HostPath 两种类型支持回收策略
  • Retain（保留）- 保留数据，需要管理员手工清理数据
  • Recycle（回收）- 清除 PV 中的数据，效果相当于执行 rm -rf /thevolume/*
  • Delete（删除）- 与 PV 相连的后端存储完成 volume 的删除操作，当然这常见于云服务商的存储服务，比如 ASW EBS。

因为PV是直接对接底层存储的，就像集群中的Node可以为Pod提供计算资源（CPU和内存）一样，PV可以为Pod提供存储资源。因此PV不是namespaced的资源，属于集群层面可用的资源。Pod如果想使用该PV，需要通过创建PVC挂载到Pod中。

PVC全写是PersistentVolumeClaim（持久化卷声明），PVC 是用户存储的一种声明，创建完成后，可以和PV实现一对一绑定。对于真正使用存储的用户不需要关心底层的存储实现细节，只需要直接使用 PVC 即可。

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-nfs
  namespace: default
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi

然后Pod中通过如下方式去使用：

...
    spec:
      containers:
      - name: nginx
        image: nginx:alpine
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80
          name: web
        volumeMounts:                        #挂载容器中的目录到pvc nfs中的目录
        - name: www
          mountPath: /usr/share/nginx/html
      volumes:
      - name: www
        persistentVolumeClaim:              #指定pvc
          claimName: pvc-nfs
...

PV与PVC管理NFS存储卷实践

环境准备

服务端：172.21.65.227

$ yum -y install nfs-utils rpcbind

# 共享目录
$ mkdir -p /data/k8s && chmod 755 /data/k8s

$ echo '/data/k8s  *(insecure,rw,sync,no_root_squash)'\>\>/etc/exports

$ systemctl enable rpcbind && systemctl start rpcbind
$ systemctl enable nfs && systemctl start nfs

客户端：k8s集群slave节点

$ yum -y install nfs-utils rpcbind
$ mkdir /nfsdata
$ mount -t nfs 172.21.65.227:/data/k8s /nfsdata

PV与PVC演示

# 在nfs-server机器中创建
$ mkdir /data/k8s/nginx

# 把/data/k8s/nginx 目录作为数据卷给k8s集群中的Pod使用
$ cat pv-nfs.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
  name: nfs-pv
spec:
  capacity:
    storage: 1Gi
  accessModes:
  - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /data/k8s/nginx
    server: 172.21.65.227

$ kubectl create -f pv-nfs.yaml

$ kubectl get pv
NAME     CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS      CLAIM   STORAGECLASS
nfs-pv   1Gi        RWO            Retain           Available

一个 PV 的生命周期中，可能会处于4中不同的阶段：

• Available（可用）：表示可用状态，还未被任何 PVC 绑定
• Bound（已绑定）：表示 PV 已经被 PVC 绑定
• Released（已释放）：PVC 被删除，但是资源还未被集群重新声明
• Failed（失败）： 表示该 PV 的自动回收失败

$ cat pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-nfs
  namespace: default
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi

$ kubectl create -f pvc.yaml
$ kubectl get pvc
NAME      STATUS   VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS   AGE
pvc-nfs   Bound    nfs-pv   1Gi        RWO                           3s
$ kubectl get pv
NAME     CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM
nfs-pv   1Gi        RWO            Retain           Bound    default/pvc-nfs

#访问模式，storage大小（pvc大小需要小于pv大小），以及 PV 和 PVC 的 storageClassName 字段必须一样，这样才能够进行绑定。

#PersistentVolumeController会不断地循环去查看每一个 PVC，是不是已经处于 Bound（已绑定）状态。如果不是，那它就会遍历所有的、可用的 PV，并尝试将其与未绑定的 PVC 进行绑定，这样，Kubernetes 就可以保证用户提交的每一个 PVC，只要有合适的 PV 出现，它就能够很快进入绑定状态。而所谓将一个 PV 与 PVC 进行“绑定”，其实就是将这个 PV 对象的名字，填在了 PVC 对象的 spec.volumeName 字段上。

# 查看nfs数据目录
$ ls /nfsdata

创建Pod挂载pvc

$ cat deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-pvc
spec:
  replicas: 1
  selector:		#指定Pod的选择器
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:alpine
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80
          name: web
        volumeMounts:                        #挂载容器中的目录到pvc nfs中的目录
        - name: www
          mountPath: /usr/share/nginx/html
      volumes:
      - name: www
        persistentVolumeClaim:              #指定pvc
          claimName: pvc-nfs


$ kubectl create -f deployment.yaml

# 查看容器/usr/share/nginx/html目录

# 删除pvc

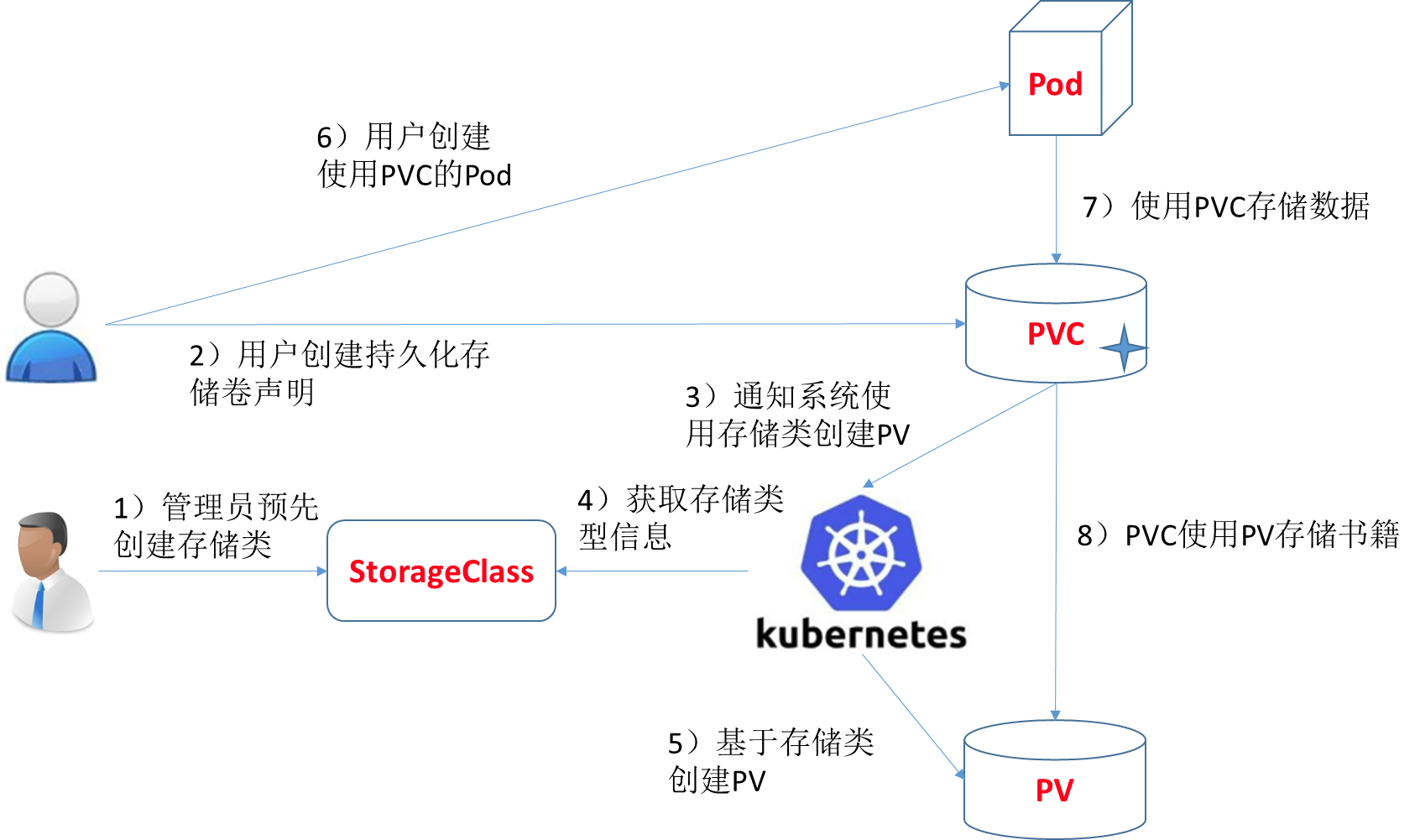

storageClass实现动态挂载

创建pv及pvc过程是手动，且pv与pvc一一对应，手动创建很繁琐。因此，通过storageClass + provisioner的方式来实现通过PVC自动创建并绑定PV。

部署： https://github.com/kubernetes-retired/external-storage

provisioner.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-client-provisioner
  labels:
    app: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: nfs-provisioner
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nfs-client-provisioner
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: registry.cn-beijing.aliyuncs.com/mydlq/nfs-subdir-external-provisioner:v4.0.0
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: luffy.com/nfs
            - name: NFS_SERVER
              value: 172.21.65.227
            - name: NFS_PATH
              value: /data/k8s
      volumes:
        - name: nfs-client-root
          nfs:
            server: 172.21.65.227
            path: /data/k8s

rbac.yaml

kind: ServiceAccount
apiVersion: v1
metadata:
  name: nfs-client-provisioner
  namespace: nfs-provisioner
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nfs-client-provisioner-runner
  namespace: nfs-provisioner
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: run-nfs-client-provisioner
  namespace: nfs-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    namespace: nfs-provisioner
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  namespace: nfs-provisioner
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  namespace: nfs-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: nfs-provisioner
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io

storage-class.yaml

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"   # 设置为default StorageClass
  name: nfs
provisioner: luffy.com/nfs
parameters:
  archiveOnDelete: "true"

创建上述资源：

$ kubectl create namespace nfs-provisioner
$ kubectl create -f rbac.yaml
$ kubectl create -f provisioner.yaml
$ kubectl create -f storage-class.yaml

# 等待pod启动成功
$ kubectl -n nfs-provisioner get pod
nfs-client-provisioner-6cfb58c597-rmc45   1/1     Running   0          27s

验证使用storageclass自动创建并绑定pv

pvc.yaml

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: test-claim
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1Mi
  storageClassName: nfs

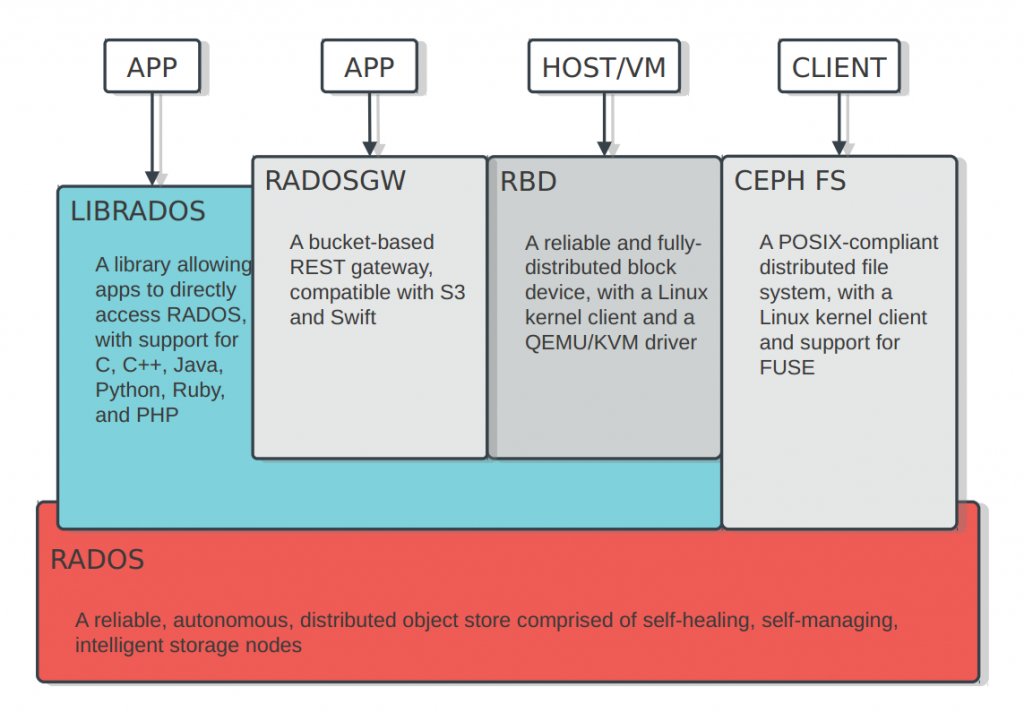

对接Ceph存储实践

ceph集群的安装及使用参考https://i4t.com/5267.html

单点快速安装： https://blog.csdn.net/h106140873/article/details/90201379

以k8s-slave2为例的步骤：

# 登录k8s-slave2,确保有一块独立磁盘,本例使用/dev/sdb设备
$ fdisk -l

Disk /dev/sda: 85.9 GB, 85899345920 bytes, 167772160 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x000b2f57

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     4196351     2097152   83  Linux
/dev/sda2         4196352    12584959     4194304   82  Linux swap / Solaris
/dev/sda3        12584960   167772159    77593600   83  Linux

Disk /dev/sdb: 107.4 GB, 107374182400 bytes, 209715200 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

## 执行下述命令
HOSTNAME=k8s-slave2
echo "172.21.65.228 $HOSTNAME" \>\>/etc/hosts
yum install -y epel-release

cat \<<EOF \> /etc/yum.repos.d/ceph.repo
[Ceph]
name=Ceph packages for $basearch
baseurl=http://mirrors.163.com/ceph/rpm-jewel/el7/x86_64
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=http://mirrors.163.com/ceph/keys/release.asc
priority=1
[Ceph-noarch]
name=Ceph noarch packages
baseurl=http://mirrors.163.com/ceph/rpm-jewel/el7/noarch
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=http://mirrors.163.com/ceph/keys/release.asc
priority=1
[ceph-source]
name=Ceph source packages
baseurl=http://mirrors.163.com/ceph/rpm-jewel/el7/SRPMS
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=http://mirrors.163.com/ceph/keys/release.asc
priority=1
EOF

# 安装ceph-deploy工具
yum -y install ceph-deploy

# 配置目录并初始化
mkdir /etc/ceph &&cd /etc/ceph
ceph-deploy new $HOSTNAME

# 修改配置文件
cp ceph.conf ceph.conf.bak
sed -i 's@^$@osd_pool_default_size = 1@g' ceph.conf
echo "mon_pg_warn_max_per_osd = 1000" \>\> /etc/ceph/ceph.conf

# 安装ceph
ceph-deploy install $HOSTNAME

# 创建monitor服务
ceph-deploy mon create $HOSTNAME
ceph-deploy  gatherkeys $HOSTNAME

# 准备osd
mkfs.xfs  /dev/sdb
mkdir -p /var/local/osd
mount /dev/sdb  /var/local/osd/
chown -R ceph:ceph /var/local/osd*

# 创建、激活osd并查看osd
ceph-deploy osd prepare $HOSTNAME:/var/local/osd
ceph-deploy osd activate $HOSTNAME:/var/local/osd
ceph-deploy osd list $HOSTNAME

# 修改配置文件权限
ceph-deploy admin $HOSTNAME
chmod +r /etc/ceph/*

# 部署mds服务
ceph-deploy mds create $HOSTNAME
ceph mds stat

# 创建ceph文件系统
ceph osd pool create cephfs_data 128
ceph osd pool create cephfs_metadata 128
ceph fs new cephfs cephfs_metadata cephfs_data
ceph fs ls

# 查看ceph状态
ceph mon stat
ceph osd stat
ceph -s

# 挂载验证
# ceph auth get-key client.admin
AQCdaG9jP09dJBAAZsl58WHL/xLNvUq7IXh1zQ==

mount -t ceph 172.21.65.228:6789:/ /mnt/cephfs -o name=admin,secret=AQCdaG9jP09dJBAAZsl58WHL/xLNvUq7IXh1zQ==

storageClass实现动态挂载

创建pv及pvc过程是手动，且pv与pvc一一对应，手动创建很繁琐。因此，通过storageClass + provisioner的方式来实现通过PVC自动创建并绑定PV

NFS，ceph-rbd，cephfs均提供了对应的provisioner

部署cephfs-provisioner

$ cat external-storage-cephfs-provisioner.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: cephfs-provisioner
  namespace: kube-system
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: cephfs-provisioner
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
  - apiGroups: [""]
    resources: ["secrets"]
    verbs: ["create", "get", "delete"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: cephfs-provisioner
subjects:
  - kind: ServiceAccount
    name: cephfs-provisioner
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: cephfs-provisioner
  apiGroup: rbac.authorization.k8s.io


---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: cephfs-provisioner
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: cephfs-provisioner
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: cephfs-provisioner
    spec:
      containers:
      - name: cephfs-provisioner
        image: "quay.io/external_storage/cephfs-provisioner:latest"
        env:
        - name: PROVISIONER_NAME
          value: ceph.com/cephfs
        imagePullPolicy: IfNotPresent
        command:
        - "/usr/local/bin/cephfs-provisioner"
        args:
        - "-id=cephfs-provisioner-1"
        - "-disable-ceph-namespace-isolation=true"
      serviceAccount: cephfs-provisioner

在ceph monitor机器中查看admin账户的key

$ ceph auth get-key client.admin
AQCdaG9jP09dJBAAZsl58WHL/xLNvUq7IXh1zQ==

创建secret

$ echo -n AQCdaG9jP09dJBAAZsl58WHL/xLNvUq7IXh1zQ==|base64
QVFDZGFHOWpQMDlkSkJBQVpzbDU4V0hML3hMTnZVcTdJWGgxelE9PQ==
$ cat ceph-admin-secret.yaml
apiVersion: v1
data:
  key: QVFDZGFHOWpQMDlkSkJBQVpzbDU4V0hML3hMTnZVcTdJWGgxelE9PQ==
kind: Secret
metadata:
  name: ceph-admin-secret
  namespace: kube-system
type: Opaque

创建storageclass

$ cat cephfs-storage-class.yaml
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: dynamic-cephfs
provisioner: ceph.com/cephfs
parameters:
    monitors: 172.21.65.228:6789
    adminId: admin
    adminSecretName: ceph-admin-secret
    adminSecretNamespace: "kube-system"
    claimRoot: /volumes/kubernetes

创建上述资源：

kubectl create -f ceph-admin-secret.yaml
kubectl create -f external-storage-cephfs-provisioner.yaml
kubectl create -f cephfs-storage-class.yaml

# 查看pod状态
kubectl -n kube-system get pod|grep cephfs

动态pvc验证及实现分析

使用流程： 创建pvc，指定storageclass和存储大小，即可实现动态存储。

创建pvc测试自动生成pv

$ cat cephfs-pvc-test.yaml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: cephfs-claim
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: dynamic-cephfs
  resources:
    requests:
      storage: 2Gi

$ kubectl create -f cephfs-pvc-test.yaml

$ kubectl get pv
pvc-2abe427e-7568-442d-939f-2c273695c3db   2Gi        RWO            Delete           Bound      default/cephfs-claim   dynamic-cephfs            1s

创建Pod使用pvc挂载cephfs数据盘

$ cat test-pvc-cephfs.yaml
apiVersion: v1
kind: Pod
metadata:
  name: nginx-pod
  labels:
    name: nginx-pod
spec:
  containers:
  - name: nginx-pod
    image: nginx:alpine
    ports:
    - name: web
      containerPort: 80
    volumeMounts:
    - name: cephfs
      mountPath: /usr/share/nginx/html
  volumes:
  - name: cephfs
    persistentVolumeClaim:
      claimName: cephfs-claim

$ kubectl create -f test-pvc-cephfs.yaml

我们所说的容器的持久化，实际上应该理解为宿主机中volume的持久化，因为Pod是支持销毁重建的，所以只能通过宿主机volume持久化，然后挂载到Pod内部来实现Pod的数据持久化。

宿主机上的volume持久化，因为要支持数据漂移，所以通常是数据存储在分布式存储中，宿主机本地挂载远程存储（NFS，Ceph，OSS），这样即使Pod漂移也不影响数据。

k8s的pod的挂载盘通常的格式为：

/var/lib/kubelet/pods/<Pod的ID>/volumes/kubernetes.io~<Volume类型\>/<Volume名字\>
