可观察性​

安装集成组件​

https://istio.io/latest/docs/ops/integrations

  1. Grafana

    $ kubectl apply -f samples/addons/grafana.yaml

  2. Jaeger

    $ kubectl apply -f samples/addons/jaeger.yaml

  3. Kiali

    # 完善扩展组件地址：
    $ kubectl apply -f samples/addons/kiali.yaml

  4. Prometheus

    $ kubectl apply -f samples/addons/prometheus.yaml
prometheus​

Prometheus：

$ cat prometheus-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: prometheus
  namespace: istio-system
spec:
  ingressClassName: nginx
  rules:
  - host: prometheus.istio.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: prometheus
            port:
              number: 9090

$ kubectl apply -f prometheus-ingress.yaml

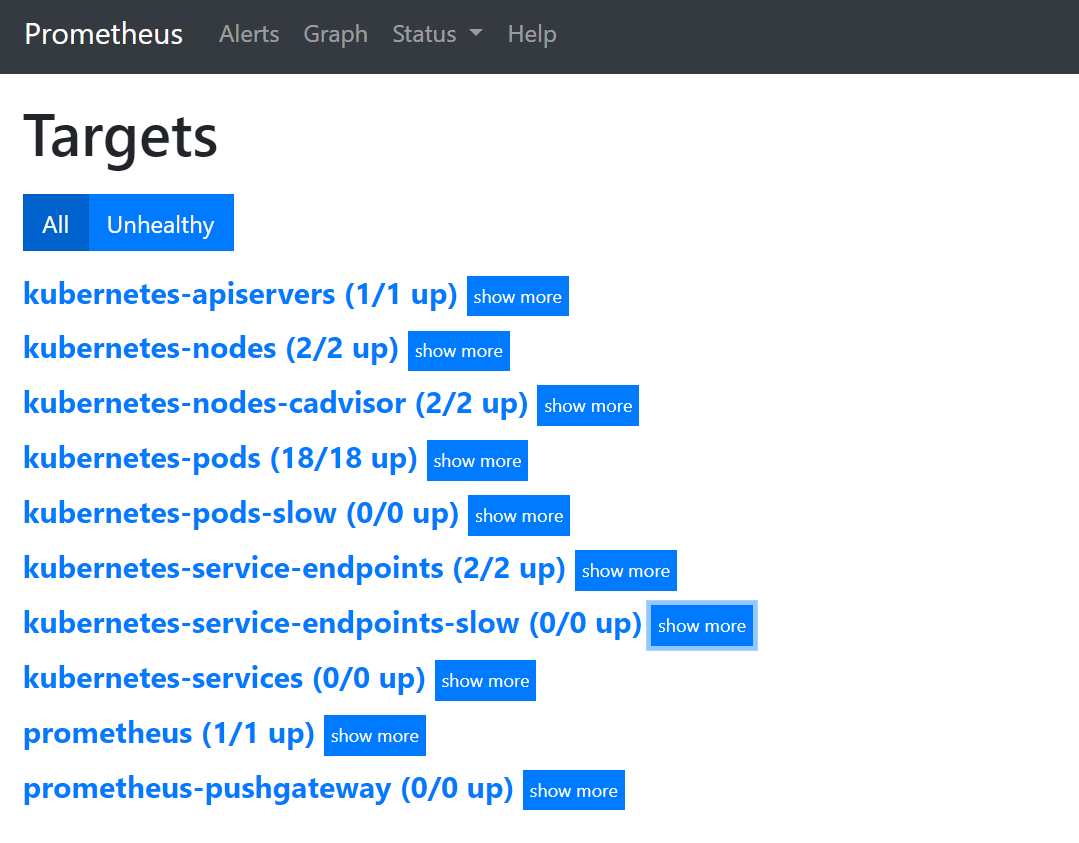

查看默认添加的targets列表：

其中最核心的是kubernetes-pods 的监控，服务网格内的每个服务都作为一个target被监控，而且服务流量指标直接由sidecar容器来提供指标。

$ kubectl -n bookinfo get po -owide
$ curl 10.244.0.53:15020/stats/prometheus

对于这些监控指标采集的数据，可以在grafana中查看到。

$ cat grafana-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: grafana
  namespace: istio-system
spec:
  ingressClassName: nginx
  rules:
  - host: grafana.istio.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: grafana
            port:
              number: 3000


$ for i in $(seq 1 10000); do curl -s -o /dev/null "http://bookinfo.luffy.com/productpage"; done

访问界面后，可以查看到Istio Mesh Dashboard等相关的dashboard，因为在grafana的资源文件中， 中以 ConfigMap 的形式挂载了 Istio各个组件的仪表盘 JSON 配置文件：

$ kubectl -n istio-system get cm istio-services-grafana-dashboards
NAME                                DATA   AGE
istio-services-grafana-dashboards   3      7d1h
jaeger​
$ cat jaeger-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: jaeger
  namespace: istio-system
spec:
  ingressClassName: nginx
  rules:
  - host: jaeger.istio.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: tracing
            port:
              number: 80

$ kubectl apply -f jaeger-ingress.yaml
kiali​

kiali 是一个 可观测性分析服务

$ cat kiali-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: kiali
  namespace: istio-system
spec:
  ingressClassName: nginx
  rules:
  - host: kiali.istio.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: kiali
            port:
              number: 20001

$ kubectl apply -f kiali-ingress.yaml

集成了Prometheus、grafana、tracing、log、

> https://istio.io/latest/docs/tasks/observability/kiali/ > > https://kiali.io/docs/configuration/authentication/
