kubeadm-ubuntu

主机规划

主机IP	主机名称	配置
172.16.10.81	k8s-master01	Ubuntu 20.04.1 LTS，2核CPU，8G内存，40G系统盘
172.16.10.82	k8s-master02	Ubuntu 20.04.1 LTS，2核CPU，8G内存，40G系统盘
172.16.10.83	k8s-master03	Ubuntu 20.04.1 LTS，2核CPU，8G内存，40G系统盘
172.16.10.84	k8s-node01	Ubuntu 20.04.1 LTS，2核CPU，8G内存，40G系统盘

安装基础软件包，各个节点操作

# 更新apt包索引
apt-get update

# 安装软件包以允许apt通过HTTPS使用存储库
apt-get -y install \
    apt-transport-https \
    ca-certificates \
    curl \
    gnupg-agent \
    software-properties-common \
    ntpdate

环境操作(所有节点)

• 关闭swap

swapoff -a
sed -i 's/.*swap.*/#&/' /etc/fstab

• 关闭防火墙

ufw disable

• 配置时间时区语言

ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
sudo echo 'LANG="en_US.UTF-8"' >> /etc/profile
source /etc/profile

• 配置内核参数让iptables对bridge的数据进行控制

cat >> /etc/sysctl.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.conf.all.forwarding = 1
net.ipv4.ip_forward= 1
fs.aio-max-nr = 1048576
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_fin_timeout = 30
net.ipv4.tcp_synack_retries = 2
net.ipv4.tcp_max_syn_backlog = 8096
EOF

sysctl -p

• 添加/etc/hosts

172.16.10.81 k8s-master01
172.16.10.82 k8s-master02
172.16.10.83 k8s-master03
172.16.10.84 k8s-node01

• 时间同步

ntpdate cn.pool.ntp.org

• 编辑计划任务，每小时做一次同步

crontab -e
* */1 * * * /usr/sbin/ntpdate   cn.pool.ntp.org

• 开启ipvs,不开启ipvs将会使用iptables，但是效率低，所以官网推荐需要开通ipvs内核

#查看是否加载了ipvs模块
lsmod|grep ip_vs

#若未开启,使用以下命令加载
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh

• ssh允许root用户登录

vi /etc/ssh/sshd_config
PermitRootLogin yes

systemctl restart sshd

• 配置免密登录

# 在master01操作
ssh-keygen -t rsa
ssh-copy-id root@k8s-master01
ssh-copy-id root@k8s-master02
ssh-copy-id root@k8s-master03

安装docker(所有节点)

# 添加Docker的官方GPG密钥
curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -

# 搜索指纹的后8个字符，验证您现在是否拥有带有指纹的密钥
sudo apt-key fingerprint 0EBFCD88

# 安装add-apt-repository工具
apt-get -y install software-properties-common

# 添加稳定的存储库
add-apt-repository \
   "deb [arch=amd64] https://download.docker.com/linux/ubuntu \
   $(lsb_release -cs) \
   stable"

# 更新apt包索引
apt-get update

# 查看Docker版本
apt-cache madison docker-ce

# 安装Docker
apt-get -y install docker-ce=5:19.03.12~3-0~ubuntu-focal docker-ce-cli=5:19.03.12~3-0~ubuntu-focal containerd.io

# 查看Docker信息
docker info

# 解决问题：WARNING: No swap limit support(操作系统下docker不支持内存限制的警告)
在基于RPM的系统上不会发生此警告，该系统默认情况下启用这些功能。
vi /etc/default/grub  添加或编辑GRUB_CMDLINE_LINUX行以添加这两个键值对"cgroup_enable=memory swapaccount=1"，
最终效果：
GRUB_CMDLINE_LINUX="cgroup_enable=memory swapaccount=1 net.ifnames=0 vga=792 console=tty0 console=ttyS0,115200n8 noibrs"

### 执行命令更新grub并重启机器
update-grub
reboot

# 修改docker配置文件，配置镜像加速器
cat > /etc/docker/daemon.json << EOF
{
    "oom-score-adjust": -1000,
    "log-driver": "json-file",
    "log-opts": {
       "max-size": "100m",
       "max-file": "3"
    },
    "max-concurrent-downloads": 10,
    "insecure-registries": ["0.0.0.0/0"],
    "max-concurrent-uploads": 10,
    "registry-mirrors": ["https://dockerhub.azk8s.cn"],
    "storage-driver": "overlay2",
    "storage-opts": [
    "overlay2.override_kernel_check=true"
    ]
}
EOF

systemctl daemon-reload && systemctl restart docker && systemctl enable docker

安装kubernetes1.17.3高可用集群

安装kubeadm,kubelet,kubectl(所有节点)

#下载 gpg 密钥
curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | apt-key add -

#添加 k8s 镜像源
cat <<EOF >/etc/apt/sources.list.d/kubernetes.list
deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main
EOF

# 更新apt包索引
sudo apt-get update

# 查看kubeadm版本
apt-cache madison kubeadm

#安装对应kubeadm,kubelet,kubectl版本
sudo apt-get install -y kubelet=1.17.3-00 kubeadm=1.17.3-00 kubectl=1.17.3-00

#查看kubeadm版本
kubeadm version

kubeadm命令详解

kubeadm config upload from-file：由配置文件上传到集群中生成ConfigMap。
kubeadm config upload from-flags：由配置参数生成ConfigMap。
kubeadm config view：查看当前集群中的配置值。
kubeadm config print init-defaults：输出kubeadm init默认参数文件的内容。
kubeadm config print join-defaults：输出kubeadm join默认参数文件的内容。
kubeadm config migrate：在新旧版本之间进行配置转换。
kubeadm config images list：列出所需的镜像列表。
kubeadm config images pull：拉取镜像到本地。
kubeadm reset :卸载服务

搭建haproxy+keepalived高可用集群

安装keepalived(master节点)

-> k8s-master01
sudo apt-get install keepalived -y

#编辑Keepalived配置文件
vi /etc/keepalived/keepalived.conf
global_defs {
   router_id LVS_DEVEL
}

vrrp_instance VI_1 {
    state BACKUP
    nopreempt
    interface eth0
    virtual_router_id 80
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass just0kk
    }
    virtual_ipaddress {
        192.168.10.88 #VIP地址
    }
}

systemctl start keepalived && systemctl enable keepalived

-> k8s-master02
sudo apt-get install keepalived -y

#编辑Keepalived配置文件
vi /etc/keepalived/keepalived.conf
global_defs {
   router_id LVS_DEVEL
}

vrrp_instance VI_1 {
    state BACKUP
    nopreempt
    interface eth0
    virtual_router_id 80
    priority 50
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass just0kk
    }
    virtual_ipaddress {
        192.168.10.88 #VIP地址
    }
}

systemctl start keepalived && systemctl enable keepalived

-> k8s-master03
sudo apt-get install keepalived -y

#编辑Keepalived配置文件
vi /etc/keepalived/keepalived.conf
global_defs {
   router_id LVS_DEVEL
}

vrrp_instance VI_1 {
    state BACKUP
    nopreempt
    interface eth0
    virtual_router_id 80
    priority 30
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass just0kk
    }
    virtual_ipaddress {
        192.168.10.88 #VIP地址
    }
}

systemctl start keepalived && systemctl enable keepalived

安装haproxy(HAProxy节点)

# 编辑haproxy配置文件
cat >> /root/haproxy.cfg  <<EOF
global
log 127.0.0.1 local0
log 127.0.0.1 local1 notice
maxconn 4096
daemon

defaults
    log     global
    mode    http
    option  httplog
    option  dontlognull
    retries 3
    option redispatch
    timeout connect  5000
    timeout client  50000
    timeout server  50000

frontend stats-front
  bind *:8081
  mode http
  default_backend stats-back

frontend fe_k8s_6444
  bind *:6444
  mode tcp
  timeout client 1h
  log global
  option tcplog
  default_backend be_k8s_6443
  acl is_websocket hdr(Upgrade) -i WebSocket
  acl is_websocket hdr_beg(Host) -i ws

backend stats-back
  mode http
  balance roundrobin
  stats uri /haproxy/stats
  stats auth pxcstats:secret

backend be_k8s_6443
  mode tcp
  timeout queue 1h
  timeout server 1h
  timeout connect 1h
  log global
  balance roundrobin
  server k8s-master01 192.168.10.81:6443
  server k8s-master02 192.168.10.82:6443
  server k8s-master03 192.168.10.83:6443
EOF

#docker启动haproxy
docker run --name haproxy -v /root/haproxy.cfg:/usr/local/etc/haproxy/haproxy.cfg:ro --restart=always --net=host -d haproxy

#验证
docker logs haproxy #显示New worker #1  forked

在master1节点初始化k8s集群

cat > kubeadm-config.yaml <<EOF
apiVersion: kubeadm.k8s.io/v1beta2
kind: ClusterConfiguration
kubernetesVersion: v1.17.3
controlPlaneEndpoint: "192.168.10.88:6444"
apiServer:
 certSANs:
  - 192.168.10.81
  - 192.168.10.82
  - 192.168.10.83
  - 192.168.10.84
  - 192.168.10.88
networking:
 podSubnet: 10.244.0.0/16
imageRepository: "registry.cn-hangzhou.aliyuncs.com/google_containers"
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
EOF

#初始化集群
kubeadm init --config kubeadm-config.yaml

显示如下，说明初始化成功了

To start using your cluster, you need torun the following as a regular user:

 mkdir -p $HOME/.kube
 sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
 sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to thecluster.
Run "kubectl apply -f [podnetwork].yaml"with one of the options listed at:
 https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of workernodes by running the following on each as root:

kubeadm join 192.168.10.88:6444 --token 34lypv.r9czddehwscnwrgg \
    --discovery-token-ca-cert-hash sha256:44adbf1427b9a034ac1eac131bd7a3a4c868439fe067b158bad68b9336c24607 \
    --control-plane

注：kubeadm join ... 这条命令需要记住，下面我们把k8s的master2、master3,在下面会用到

在master1节点执行如下，这样才能有权限操作k8s资源

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf$HOME/.kube/config
sudo chown $(id -u):$(id -g)$HOME/.kube/config

在master1节点执行kubectl get nodes

STATUS为NotReady,因为还未安装网络插件

NAME        STATUS     ROLES    AGE    VERSION
master1  NotReady   master   2m13s  v1.17.3

master1节点安装网络插件calico

kubectl apply -f https://docs.projectcalico.org/v3.8/manifests/calico.yaml

安装calico之后，在master1节点执行kubectl get nodes 显示如下，看到STATUS是Ready，kubectl get pods -n kube-system可以看到coredns也是running状态，说明master1节点的calico安装完成

NAME        STATUS     ROLES    AGE    VERSION
master1       Ready   master  2m13s   v1.17.3

把master1节点的证书拷贝到master2和master3上

# master2,master3创建相关文件夹
cd /root && mkdir -p /etc/kubernetes/pki/etcd &&mkdir -p ~/.kube/

# 在master1节点把证书拷贝到master2和master3上，在master1上操作
scp /etc/kubernetes/pki/ca.crt k8s-master02:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/ca.key k8s-master02:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.key k8s-master02:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.pub k8s-master02:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.crt k8s-master02:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.key k8s-master02:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/etcd/ca.crt k8s-master02:/etc/kubernetes/pki/etcd/
scp /etc/kubernetes/pki/etcd/ca.key k8s-master02:/etc/kubernetes/pki/etcd/
scp /etc/kubernetes/pki/ca.crt k8s-master03:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/ca.key k8s-master03:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.key k8s-master03:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/sa.pub k8s-master03:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.crt k8s-master03:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/front-proxy-ca.key k8s-master03:/etc/kubernetes/pki/
scp /etc/kubernetes/pki/etcd/ca.crt k8s-master03:/etc/kubernetes/pki/etcd/
scp /etc/kubernetes/pki/etcd/ca.key k8s-master03:/etc/kubernetes/pki/etcd/


#  证书拷贝之后在master2和master3上执行如下命令，形成集群
kubeadm join 192.168.10.88:6444 --token 34lypv.r9czddehwscnwrgg \
    --discovery-token-ca-cert-hash sha256:44adbf1427b9a034ac1eac131bd7a3a4c868439fe067b158bad68b9336c24607 \
    --control-plane

#--control-plane：这个参数表示加入到k8s集群的是master节点

# 在master2和master3上操作：
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf$HOME/.kube/config
sudo chown $(id -u):$(id -g)$HOME/.kube/config

# kubectl get nodes 显示如下：
NAME     STATUS   ROLES    AGE    VERSION
master1  Ready    master   39m    v1.17.3
master2  Ready    master   5m9s   v1.17.3
master3  Ready    master   2m33s  v1.17.3

把node1节点加入到k8s集群，在node节点操作

kubeadm join 192.168.10.88:6444 --token 34lypv.r9czddehwscnwrgg \
    --discovery-token-ca-cert-hash sha256:44adbf1427b9a034ac1eac131bd7a3a4c868439fe067b158bad68b9336c24607

检查集群状况

# 检查组件状态是否正常
kubectl get componentstatuses

# 查看集群系统信息
kubectl cluster-info

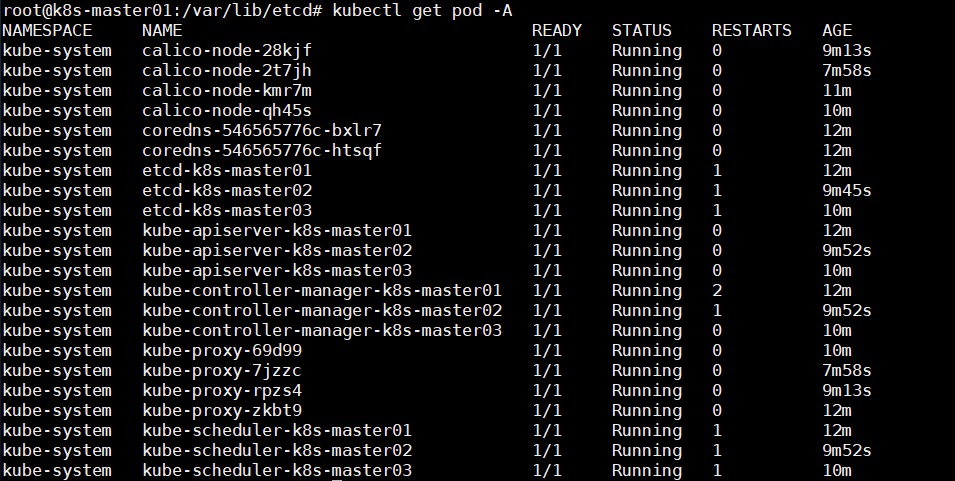

# 查看核心组件是否运行正常（Running）
kubectl -n kube-system get pod

证书替换

查看证书有效时间

# 查看ca证书有效期
openssl x509 -in /etc/kubernetes/pki/ca.crt -noout -text  |grep Not
可看到ca证书有效期是10年

# 查看apiserver证书有效期
openssl x509 -in /etc/kubernetes/pki/apiserver.crt -noout -text  |grep Not
可看到apiserver证书有效期是1年

延长证书过期时间

# 把update-kubeadm-cert.sh文件上传到master1、master2、master3节点
git clone https://github.com/judddd/kubernetes1.17.3.git
chmod +x update-kubeadm-cert.sh

# 将所有组件证书延迟至10年
./update-kubeadm-cert.sh all

#验证
openssl x509 -in /etc/kubernetes/pki/apiserver.crt -noout -text  |grep Not

kubernetes集群升级

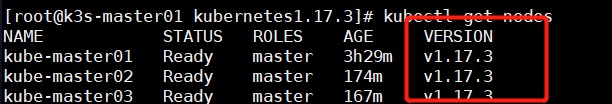

查看当前版本

kubectl get nodes

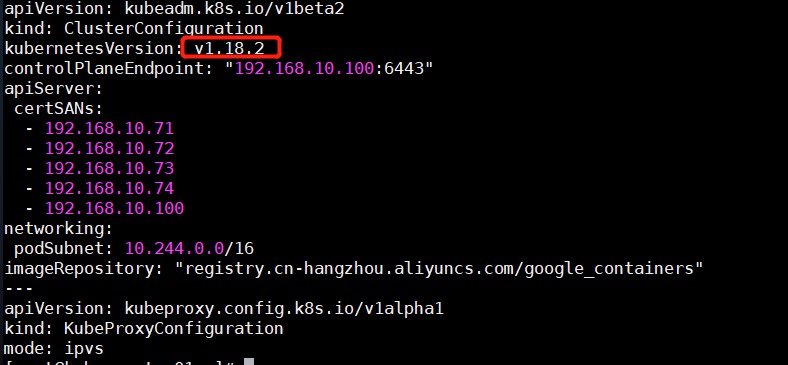

master节点编辑kubeadm-config-upgrade.yaml

ssh k8s-master01
cp kubeadm-config.yaml kubeadm-config-upgrade.yaml
vi kubeadm-config-upgrade.yaml
#将Kubernetes版本改为1.18.2

scp kubeadm-config-upgrade.yaml root@k8s-master02:/root/
scp kubeadm-config-upgrade.yaml root@k8s-master03:/root/

所有节点升级kubeadm,kubelet,kubectl

sudo apt-get install -y kubelet=1.18.2-00 kubeadm=1.18.2-00 kubectl=1.18.2-00

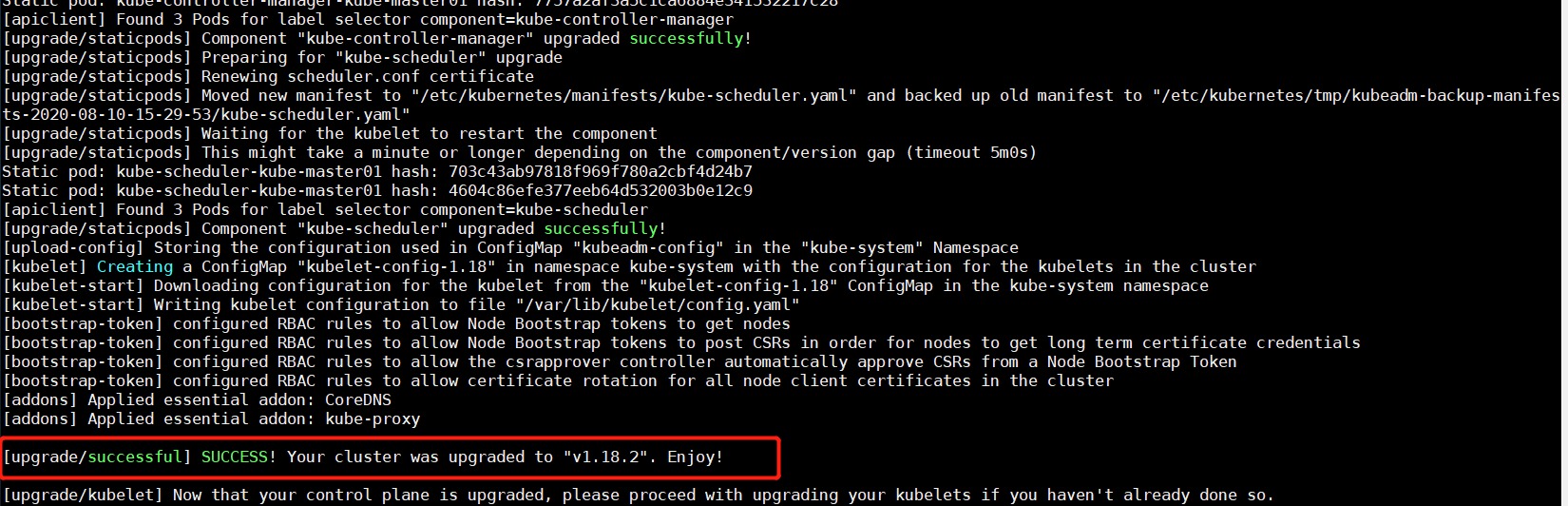

master节点升级Kubernetes集群

# 三个master节点执行
kubeadm upgrade apply --config=kubeadm-config-upgrade.yaml

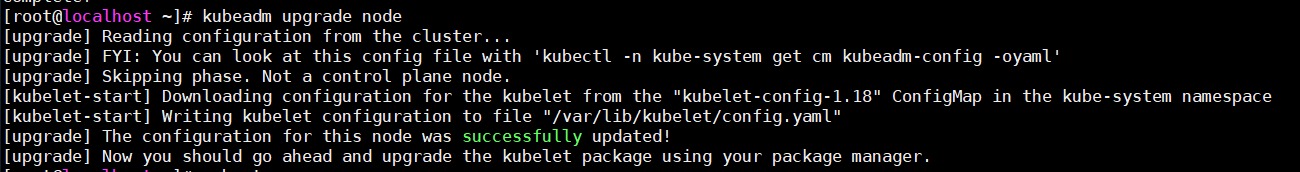

node节点升级

#node节点执行
kubeadm upgrade node

所有节点升级成功后,若未正常显示版本,可重启节点

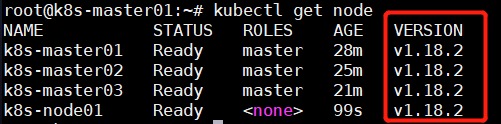

kubectl get node

升级成功

ETCD数据备份恢复

手动备份

# 拷贝etcd容器的etcdctl命令到宿主机本地的 /usr/bin/下
docker cp k8s_etcd_etcd-master01_kube-system_32144e70958a19d4b529ed946b3e2726_1:/usr/local/bin/etcdctl /usr/bin

#创建备份目录
mkdir  /etcd_backup/

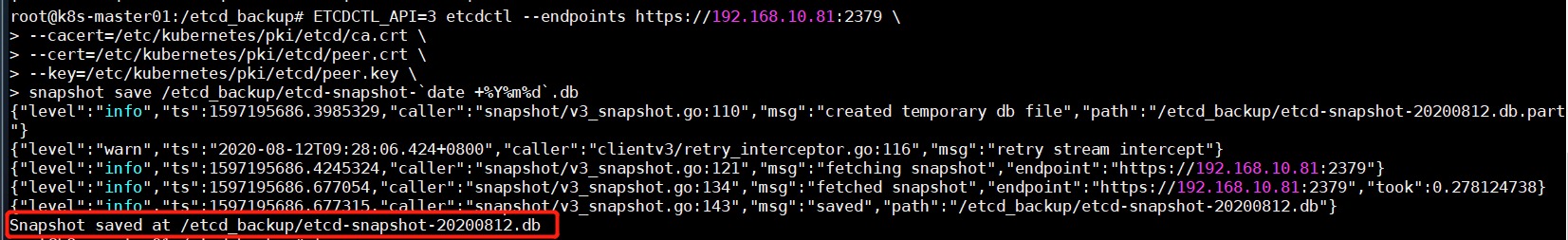

#开始备份
ETCDCTL_API=3 etcdctl --endpoints https://192.168.10.81:2379 \
--cacert=/etc/kubernetes/pki/etcd/ca.crt \
--cert=/etc/kubernetes/pki/etcd/peer.crt \
--key=/etc/kubernetes/pki/etcd/peer.key \
snapshot save /etcd_backup/etcd-snapshot-`date +%Y%m%d`.db

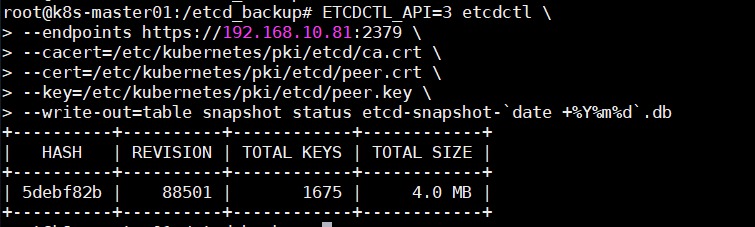

查看备份数据的状态

ETCDCTL_API=3 etcdctl \
--endpoints https://192.168.10.81:2379 \
--cacert=/etc/kubernetes/pki/etcd/ca.crt \
--cert=/etc/kubernetes/pki/etcd/peer.crt \
--key=/etc/kubernetes/pki/etcd/peer.key \
--write-out=table snapshot status /etcd_backup/etcd-snapshot-`date +%Y%m%d`.db

拷贝etcdctl以及备份数据到其他master节点中

scp /usr/bin/etcdctl root@k8s-master02:/usr/bin/
scp /etcd_backup/etcd-snapshot-`date +%Y%m%d`.db root@k8s-master02:/root/

scp /usr/bin/etcdctl root@k8s-master03:/usr/bin/
scp /etcd_backup/etcd-snapshot-`date +%Y%m%d`.db root@k8s-master03:/root/

Etcd数据恢复

# 停止集群三台master节点的kubelet服务
systemctl stop kubelet

# etcd数据存放目录是/var/lib/etcd/，此目录是容器挂载宿主机的/var/lib/etcd/。删除宿主机的/var/lib/etcd/目录就是清空etcd容器的数据

# 清空三台master节点 etcd容器数据
 rm -rf /var/lib/etcd/

# 恢复etcd数据
-> k8s-master01
export ETCDCTL_API=3
etcdctl snapshot restore /etcd_backup/etcd-snapshot-`date +%Y%m%d`.db \
--cacert=/etc/kubernetes/pki/etcd/ca.crt \
--cert=/etc/kubernetes/pki/etcd/peer.crt \
--key=/etc/kubernetes/pki/etcd/peer.key \
--name=master01 \
--data-dir=/var/lib/etcd \
--skip-hash-check \
--initial-advertise-peer-urls=https://192.168.10.81:2380 \
--initial-cluster "master01=https://192.168.10.81:2380,master02=https://192.168.10.82:2380,master03=https://192.168.10.83:2380"

-> k8s-master02
export ETCDCTL_API=3
etcdctl snapshot restore /root/etcd-snapshot-`date +%Y%m%d`.db \
--cacert=/etc/kubernetes/pki/etcd/ca.crt \
--cert=/etc/kubernetes/pki/etcd/peer.crt \
--key=/etc/kubernetes/pki/etcd/peer.key \
--name=master02 \
--data-dir=/var/lib/etcd \
--skip-hash-check \
--initial-advertise-peer-urls=https://192.168.10.82:2380 \
--initial-cluster "master01=https://192.168.10.81:2380,master02=https://192.168.10.82:2380,master03=https://192.168.10.83:2380"

-> k8s-master03
export ETCDCTL_API=3
etcdctl snapshot restore /root/etcd-snapshot-`date +%Y%m%d`.db \
--cacert=/etc/kubernetes/pki/etcd/ca.crt \
--cert=/etc/kubernetes/pki/etcd/peer.crt \
--key=/etc/kubernetes/pki/etcd/peer.key \
--name=master03 \
--data-dir=/var/lib/etcd \
--skip-hash-check \
--initial-advertise-peer-urls=https://192.168.10.83:2380 \
--initial-cluster "master01=https://192.168.10.81:2380,master02=https://192.168.10.82:2380,master03=https://192.168.10.83:2380"

#三台master开启kubelet服务
systemctl start kubelet

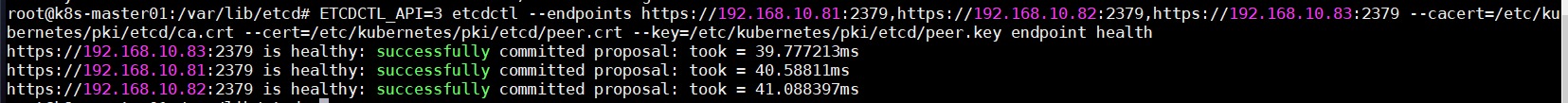

#查看etcd是否健康
ETCDCTL_API=3 etcdctl --endpoints https://192.168.10.81:2379,https://192.168.10.82:2379,https://192.168.10.83:2379 \
--cacert=/etc/kubernetes/pki/etcd/ca.crt \
--cert=/etc/kubernetes/pki/etcd/peer.crt \
--key=/etc/kubernetes/pki/etcd/peer.key \
endpoint health

k8s运行正常
